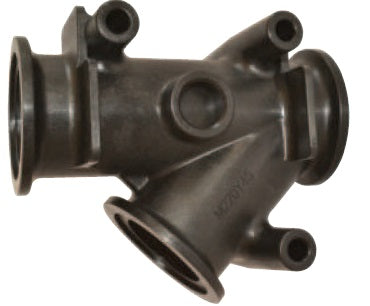

Terremax Y 45° Flange - Manifold Flange Fitting

FP 45° Y Flange with 1" Lugs

M220Y45 =
👉 2" full-port  flange × 45° “Y” fitting (3-way split)

• M220 → 2" full-port flange system
• Y45 → 45° Y configuration (branch outlet at 45° angle)

⚙️ What it does

• Splits flow into two directions at a 45° angle
• All ports are 2" flange connections
• Designed for high-flow, low-restriction systems

📌 This is NOT an elbow — it’s a 3-way splitter (Y)

📊 Key specs

• Size: 2 inch full port
• Material: Polypropylene
• Pressure: ~150–300 PSI depending on conditions
• Connection:  flange (clamp + gasket)
• Orientation: adjustable before tightening

🧠 Why people use this

• Better flow than a “T” (less turbulence)
• Smooth 45° branch = less pressure drop
• Quick install/remove (no threads)
• Ideal for sprayer plumbing manifolds

⚙️ Typical uses

• Ag sprayers (boom sections, bypass lines)
• Nurse tanks / transfer systems
• Pump suction or discharge splitting
• Chemical handling setups
