Transland 55604 – 6½" Stainless Steel Spray Pump (2.5 Outlet/ 3 Inlet) 602/802 w/Diagram
Regular price
$3,314.00
Couldn't load pickup availability
Ask an expert

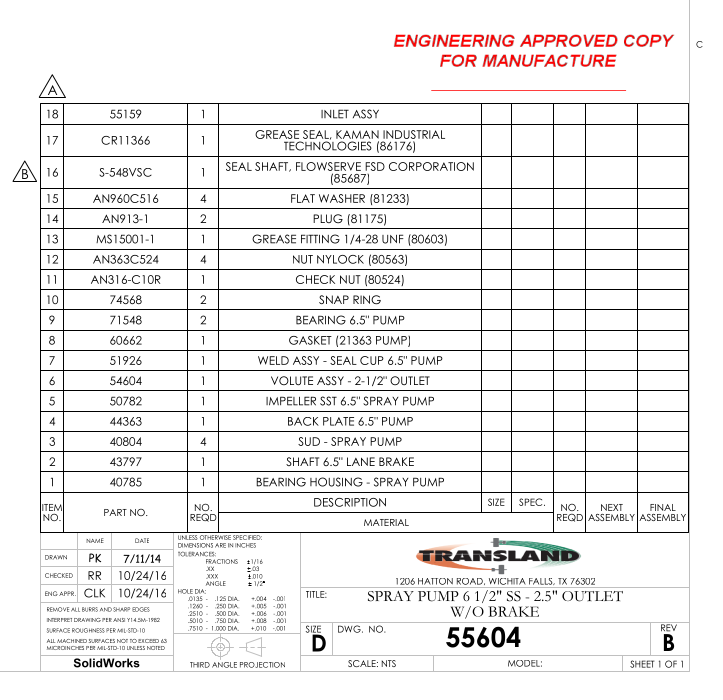

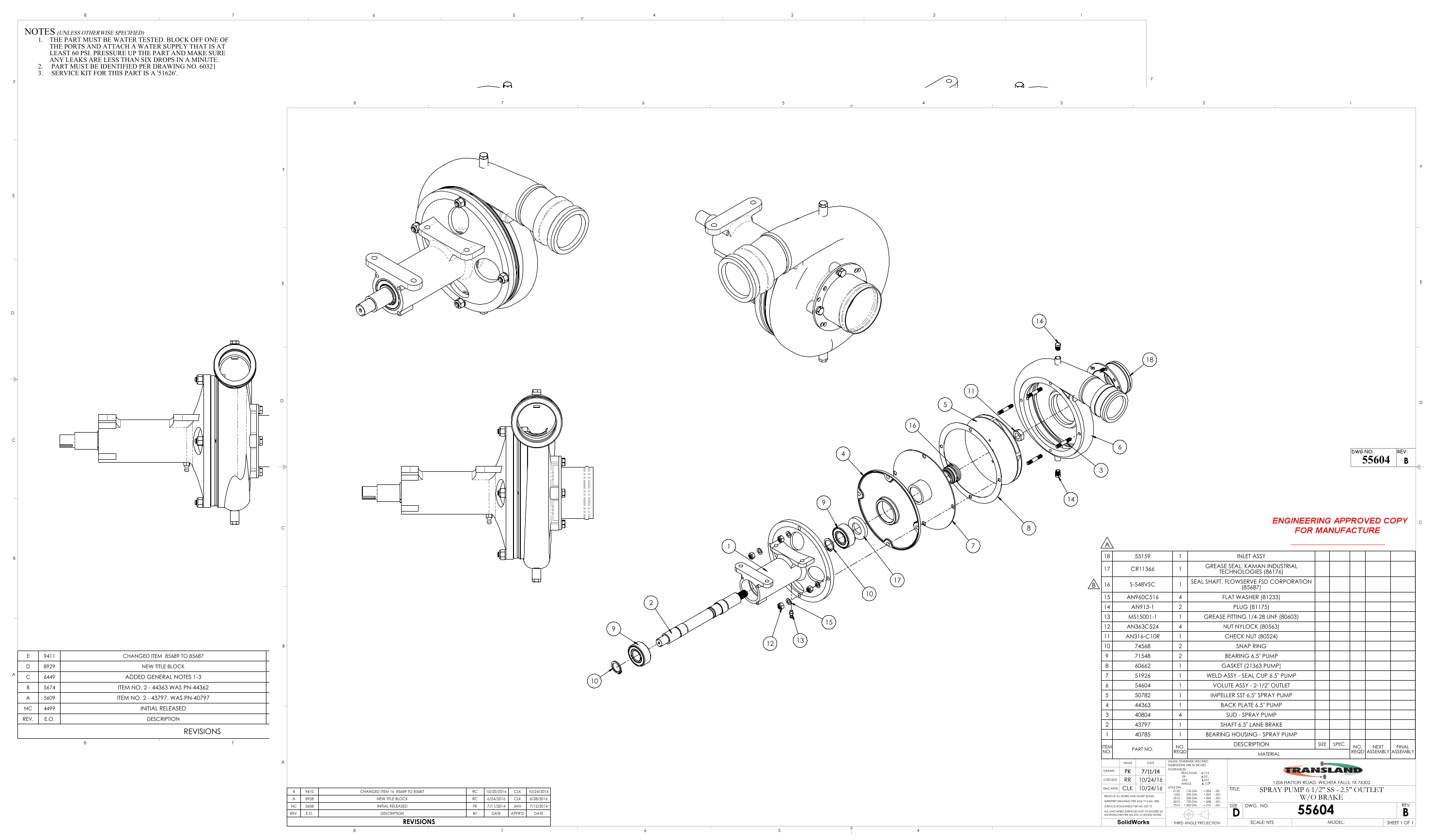

Parts list from Transland drawing 55604.
Complete Pump and/or Part Numbers
Service Kits Are With and Without Manual Brakes
Bulk order
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
COMPLETE – 55604 – 6½" SS Spray Pump (2.5" Outlet, W/O Brake) – COMPLETE
55604
|
|
||
|
Service Kit 51626 With NO Brake, FAN
|
|
||
|
Service Kit 51627 W/Manual Brake
|
|
||
|
1 – 40785 – Bearing Housing – Spray Pump
40785
|
|
||
|
2 – 43797 – Shaft – 6.5" Lane Brake
43797
|
|
||
|
3 – 40804 – Stud – Spray Pump
40804
|
|
||
|
4 – 44363 – Back Plate – 6.5" Pump
44363
|
|
||
|
5 – 50782 – Impeller SST – 6.5" Spray Pump
50782
|
|
||
|
6 – 54604 – Volute Assy – 2.5" Outlet
54604
|
|
||
|
7 – 51926 – Weld Assy – Seal Cup 6.5" Pump
51926
|
|
||
|
8 – 60662 – Gasket (21363 Pump)
60662
|
|
||
|
9 – 71548 – Bearing – 6.5" Pump
71548
|
|
||
|
10 – 74568 – Snap Ring
74568
|
|
||
|
11 – AN316-C10R – Check Nut (80524)
AN316-C10R
|
|
||
|
12 – AN363-C524 – Nut Nylock (80563)
AN363-C524
|
|
||
|
13 – MS15001-1 – Grease Fitting 1/4-28 UNF (80603)
MS15001-1
|
|
||
|
14 – AN913-1 – Plug (81175)
AN913-1
|
|
||
|
15 – AN960C516 – Flat Washer (81233)
AN960C516
|
|
||
|
16 – S-548VSC – Seal Shaft, Flowserve FSD Corp. (85687)
S-548VSC
|
|
||
|
17 – CR11366 – Grease Seal, Kaman Industrial Technologies (86176)
CR11366
|
|
||
|
18 – 55159 – Inlet Assy
55159
|
|
