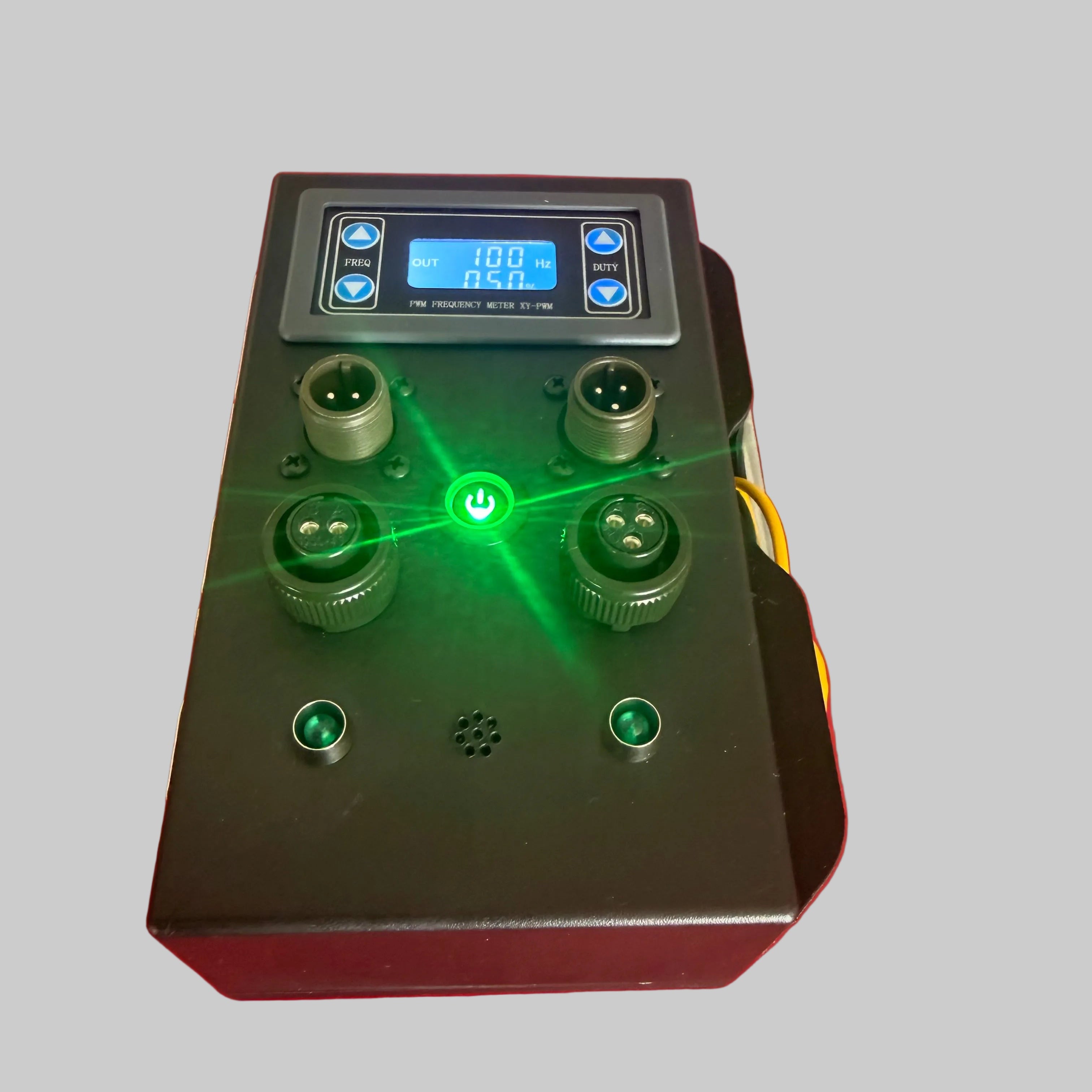

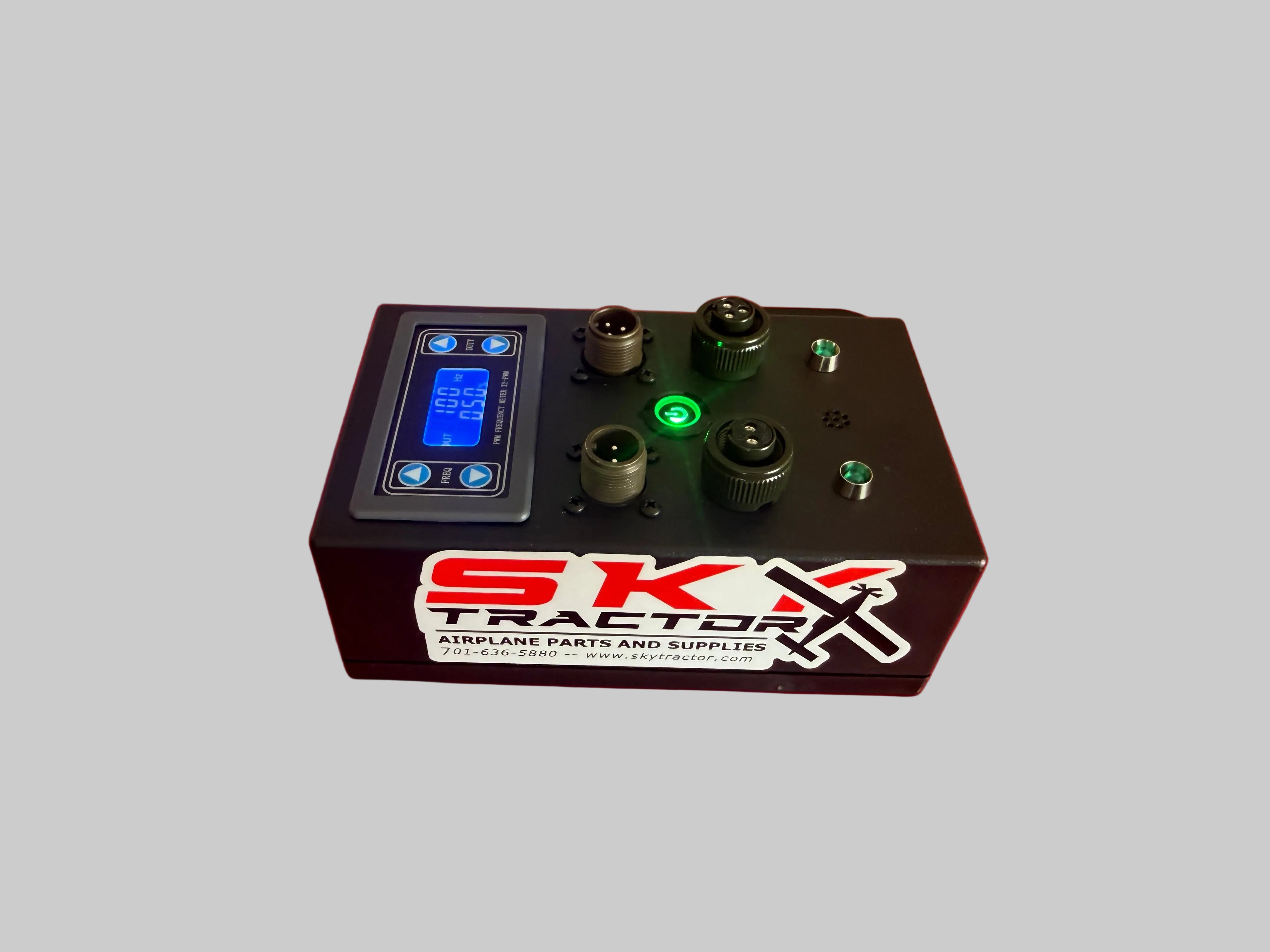

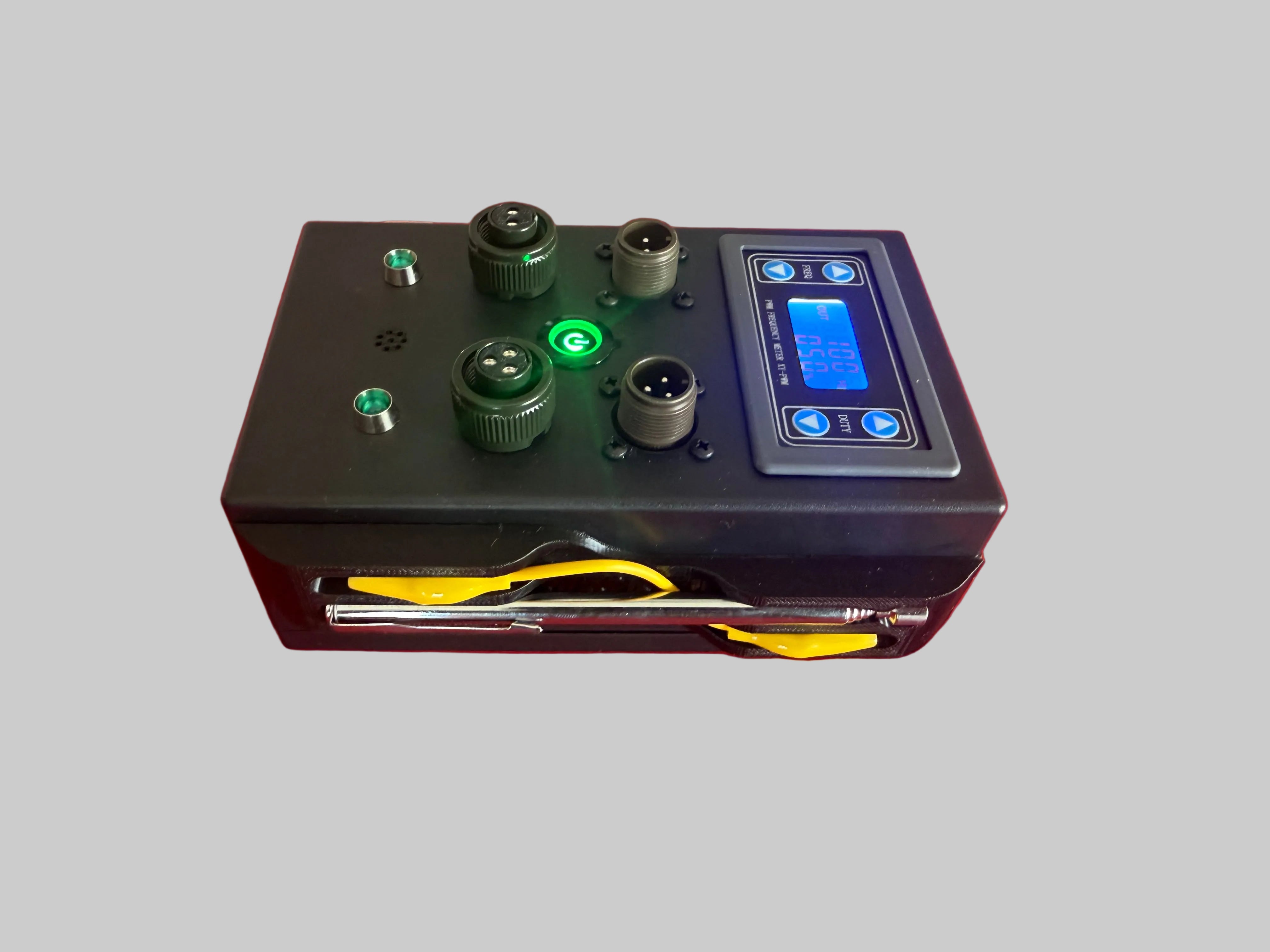

FlowSim Pro – Flow Control Diagnostic System

OPERATING INSTRUCTIONS

Stop guessing. Start diagnosing.

This system allows full testing of flow control systems without running water or starting the aircraft. Designed for ag aviation systems including Satloc, Ag Pilot X, Ag Nav, DynaNav, Tabula, and more.

⚠️ The Problem With Traditional Testing

Most troubleshooting today relies on the “screwdriver test” — spinning a turbine sensor manually and hoping the system reacts.

• No consistent signal
• No control over flow rate
• No way to simulate real operating conditions
• Cannot test full system response

It’s not accurate. It’s not repeatable. And it doesn’t tell you what’s actually wrong.

🔧 Full System Testing — From Install to Troubleshooting

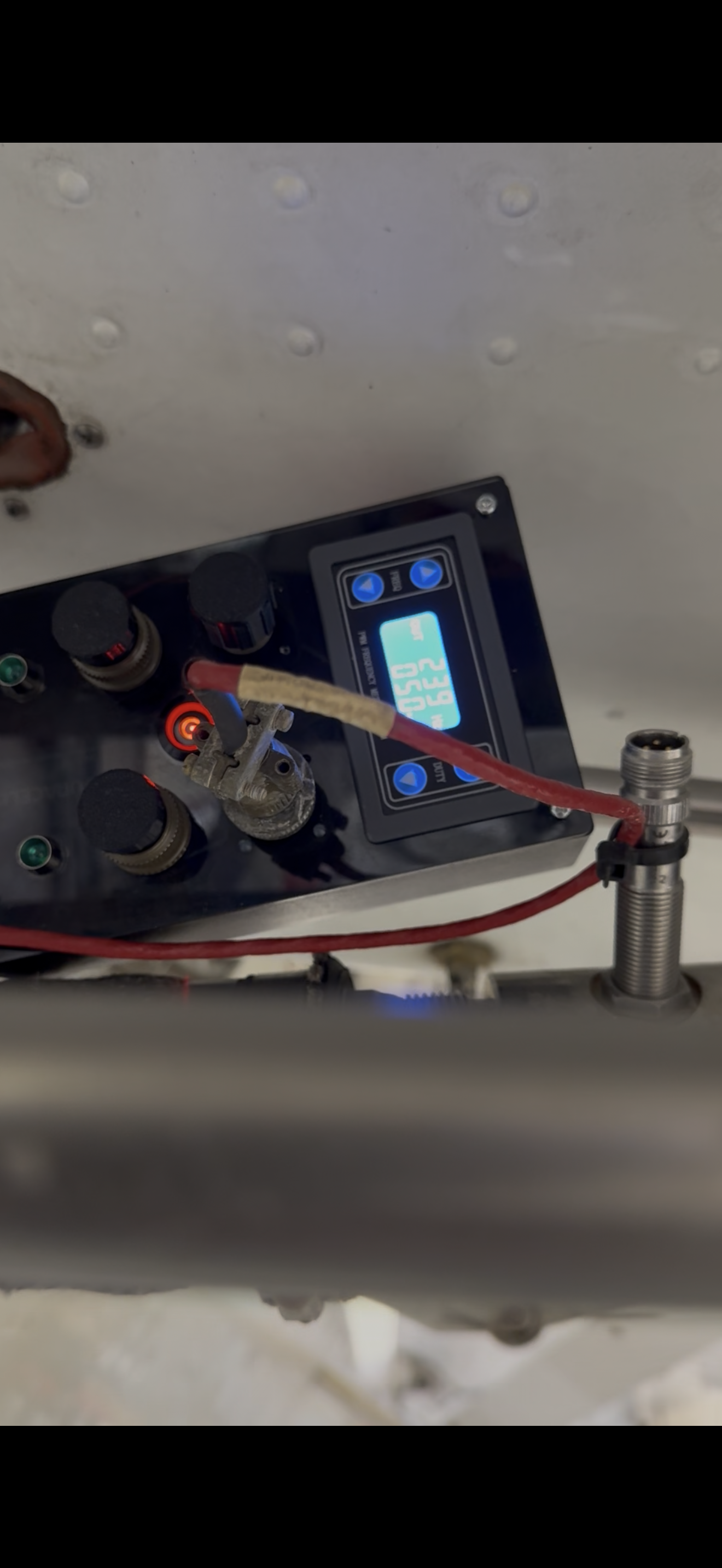

FlowSim Pro isn’t just for diagnosing problems — it’s a critical tool for installers and technicians from day one.

Verify the entire system is working correctly before it ever leaves the shop, and diagnose issues later with the same tool.

• Confirm proper wiring and connections during install
• Simulate flow and verify GPS/controller response
• Adjust flow rate and watch real-time valve movement
• Ensure correct rate control behavior before first use

Instead of finding problems in the field, you can catch them during install — saving time, avoiding callbacks, and preventing costly downtime.

🎯 Change Flow Rate — See Real Response

This isn’t a simple signal tester — you can actively control the flow rate going into the system.

• Increase or decrease simulated flow
• Watch the valve open and close accordingly
• Verify proper rate control behavior

If the system is working correctly, it will react exactly like it does in the field:

• Reduce flow → valve closes down
• Increase flow → valve opens up
• Shut off section → flow drops and valve responds

🚜 Simulate Real Field Conditions

You can test how the system reacts to real operating changes:

• Change simulated speed
• Adjust swath width
• Verify correct flow rate per acre response

This ensures your system is calibrated and behaving correctly before you ever leave the ground.

🔍 Troubleshoot Problems Fast

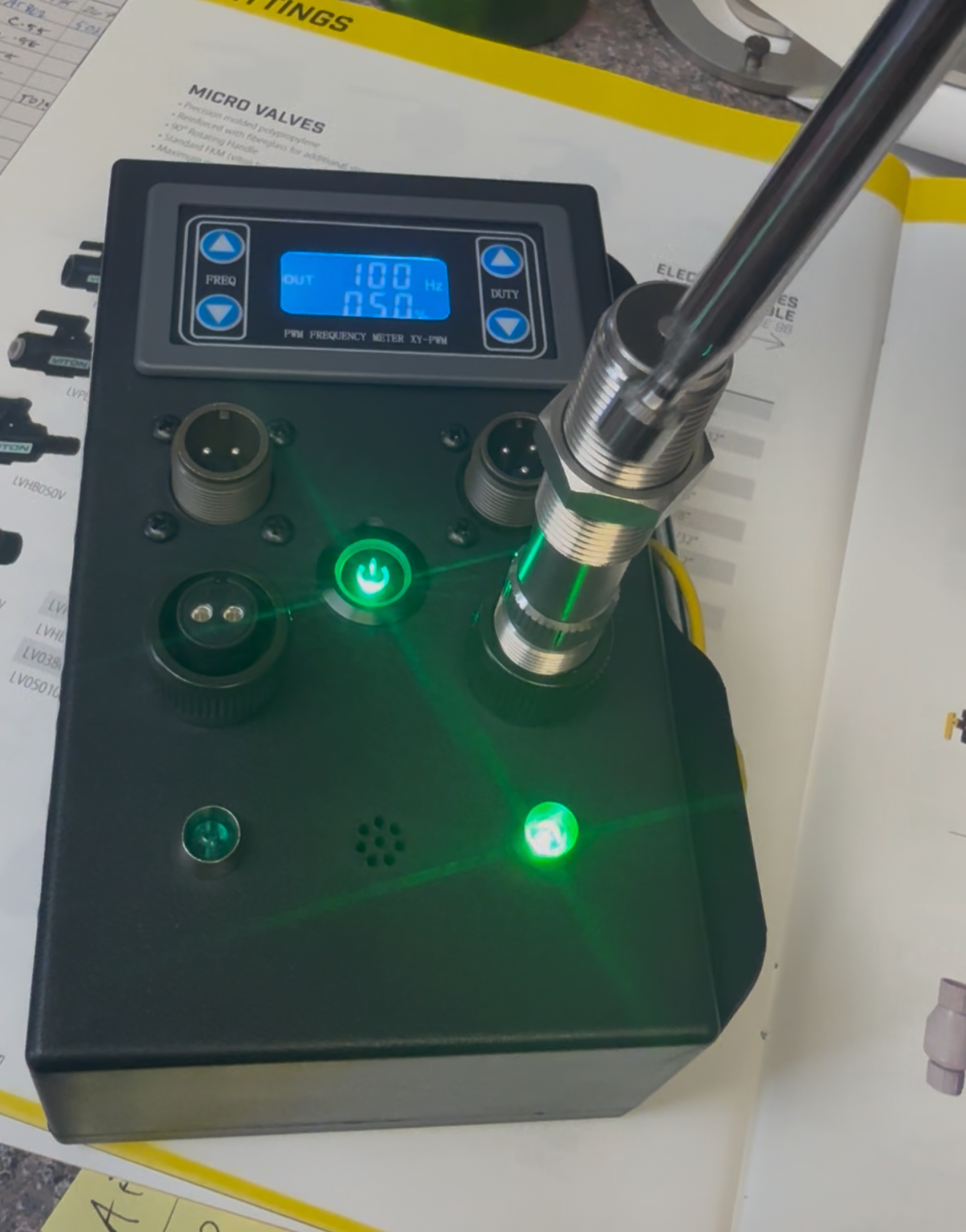

• Identify stuck or failing flow meters
• Detect bad cables or wiring issues
• Verify valve motor response
• Isolate controller (CPU) problems

Test the system under controlled conditions instead of guessing or swapping parts.

⏱️ Save Hours of Time

• No running water systems
• No starting aircraft
• No long troubleshooting sessions
• No back-and-forth phone calls

What used to take hours now takes minutes.

🌎 Built for More Than Aviation

This system isn’t limited to ag aircraft.

• Oil & gas applications
• Farming equipment
• Any system using 2-pin or 3-pin flow sensors

If it uses a flow signal, this tool can test it.

💰 Why Every Fleet Should Have One

• Eliminates hours of troubleshooting time
• Reduces unnecessary part replacement
• Keeps equipment working instead of sitting
• Pays for itself quickly in saved labor

If you run multiple machines or aircraft, this is not optional — it’s a necessity.
